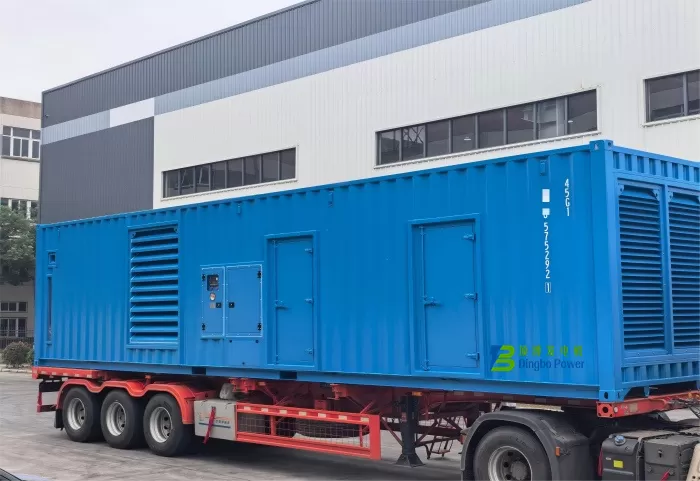

700KW 875KVA Super Silent Containerized Diesel Generator Set

Dingbo Container Type Diesel Generator Set

Standard & Soundproof Container Power Station

Power Range: 500KW-2400KW

* Can choose different brands of diesel engine and alternator

* Suitable for field work, equipped with drive steering system, brake, taillight, etc, meet the road requirements.

Optional accessories:

Automatic fuel pump (or control valve) / coolant adding pump / double oil water separator / automatic parallel system etc.

In accordance with international standards

In accordance with international standards for container design and manufacturing, 20 feet for 1000KVA or less, 40 feet for 1250KVA or above.

Accord with CSC (International Convention for Safety Container) Certification, the whole unit can be directly as a standard container for shipping, greatly savings transportation costs.

Features of containerized silent diesel generator set

1. Two explosion-proof lights (an extra one for the control panel) are designed inside the container, easy to operate and maintain.

2. Available to access in the front and back of the container, the side door is arranged on both sides of the box body, which is convenient for users to maintain and overhaul, and a ladder is arranged outside the box.

3. All hinges, locks, bolts are made of stainless steel, anti-wave and anti- intrusion device are installed inside the container.

4. The control panel and the output switchgear are on the same side of the container for daily operation and output cable connection.

5. Standard configuration with permanent excitation PMG system to improve the motor starting ability and the waveform distortion with immunity;

6. Apply unique design for fuel tank, pipe, machine oil emission and silencer, it is popular among users.

7. The mute housing is made by adopting the high performance anti-aging flame retardant type sound insulation

materials and sound absorbing materials.

For more information, please contact us.
