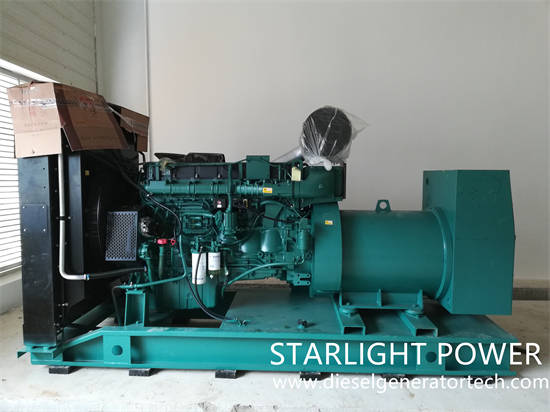

Composition Of Crank Connecting Rod Mechanism Of Diesel Generator Set

The crank connecting rod mechanism is the key component of the diesel generator set to realize the work cycle and complete the energy conversion. It is composed of engine block group, piston connecting rod group, crankshaft flywheel group and other components. The generator manufacturer introduces the components and functions of the crank connecting rod mechanism of the diesel generator set in detail.

Components of crank linkage:

(1) Body group.

The structure of the engine block group is complex, mainly including the cylinder block, crankcase, cylinder liner, cylinder gasket and other fixed parts. The engine block is the framework of the internal combustion engine. In addition to serving as the support for the cylinder liner and the moving parts of the crank connecting rod mechanism, it can also be used to install the cylinder head, the parts of the valve distribution mechanism and the driving mechanism, as well as some accessories of various auxiliary systems, and it can be installed on the vehicle with its support. At the same time, the engine block is also equipped with a cooling water channel and a lubricating oil channel.

(2) Piston connecting rod set.

Including piston, piston ring, piston pin, connecting rod and other moving parts. Its function is to transmit the gas explosion pressure to the crankshaft, and convert the reciprocating linear motion of the piston into the rotary motion of the crankshaft.

(3) Crankshaft flywheel set.

Including crankshaft, flywheel, etc., which can evenly output torque and speed for external work.

Functions of crank linkage:

(1) The force of the gas acting on the piston crown is converted into the torque of the crankshaft, so as to output mechanical energy to the working machinery.

(2) In the power stroke, the heat energy generated by fuel combustion is transformed into the mechanical energy of reciprocating motion of the piston, and then into the rotary motion of the crankshaft to output power.

(3) In the other three auxiliary strokes, the rotary motion of the crankshaft is transformed into the reciprocating motion of the piston to prepare for the power stroke.

The above are the components and functions of the crank connecting rod mechanism of the diesel generator set introduced by Jiangsu Starlight Electricity Equipments Co.,Ltd.
