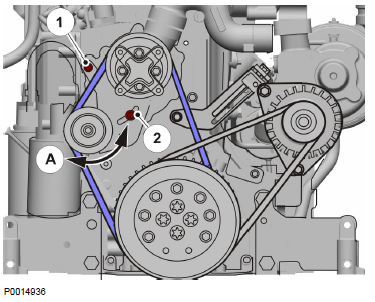

1 Remove the fuel pump and coolant pump drive belt; refer to Drive Belt, Change page 204. IMPORTANT! Work on the fuel system demands exceptional cleanliness. NOTICE! Be prepared to gather up fluids. 2 Undo clamp (1) and remove the fuel line (2). 3 Undo (1) the bracket (2).
1 Open the hand pump (1), by pressing it in and turning it counter-clockwise. 2 Purge the fuel system by pumping at least 250 strokes on the hand pump. Pump rapidly, to maintain pressure in the pump. NOTICE! Purging is not complete while resistance is felt in the pump. 3 Close the hand pump (1) by pressing it in and turning it clockwise. 4 Start the engine and let it idle for at least 5 minutes, before speed is increased.
The closed circuit breather separator is mounted on the right hand side of the gearcase and is connected to the air inlet system between the air cleaner and turbocharger via the breather valve
Remove the filter separator canister using a strap wrench see Fig. 33 fill the new filter/ separator with clean engine oil to the rubber seal, then screw the canister onto the housing using firm hand pressure.
