Wuxi WD Series Engine Power for 235-730kw Diesel Generator

Oct. 10, 2019

Starlight Power company is authorized as OEM supplier of Wuxi WD series (WanDi brand )diesel engines. Today we mainly talk about WD series diesel engines for 235-730kw diesel generator.

Wuxi Wandi Power Group Co., Ltd. is a large-scale backbone enterprise that develops and produces components of internal combustion engines and turbochargers. Wandi Power Group is composed of Wuxi Power Engineering Co., Ltd., the main enterprise, and Wuxi Fanneywell Engineering Co., Ltd., a Sino-foreign joint venture company(Wuxi Power Engineering Co., Ltd. (WD) joints venture with Cummins (China) Investment Co., Ltd. (CCI) ).

diesel engine

WD series diesel engine 138, 145, 152 cylinder diameter series 6 cylinder and 12 cylinder, gas engine, power covers 56kw-1320kw, widely used in power plants, marine, fire protection, drilling and other supporting fields. All products have obtained export product quality license.

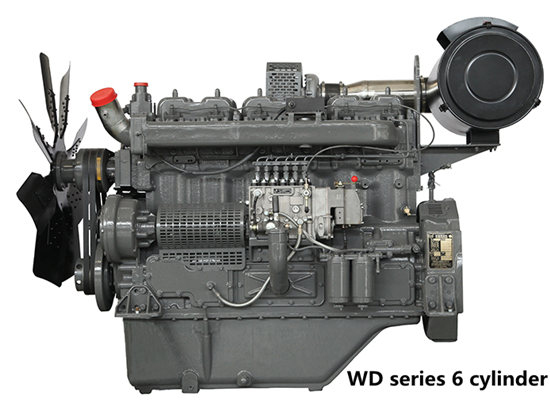

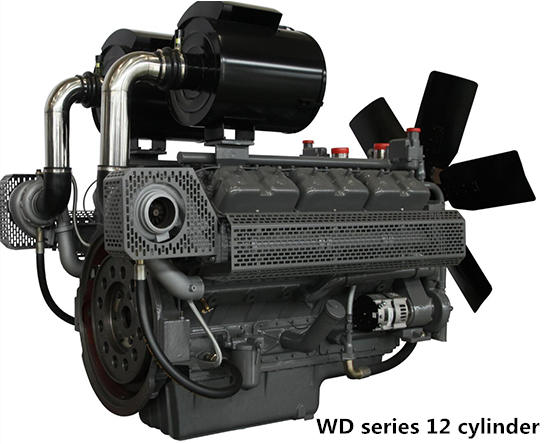

WD series 6 cylinder and 12 cylinder diesel engine

They are used for diesel generating set, which was improved by absorbing the technology of Institute of Military Industry and drawing on the experience of AVL on the basis of the original X6138 diesel engine. The standard SAE No.0 flywheel shell and SAE No.14 flywheel interface are used to match the output power, which is convenient for users to install.

Main technical parameter of WD series 6 cylinder diesel engine (power range 235kw-353kw)

Model	Bore x Stroke (mm)	Displacement (L)	Rated Speed (r/min)	Rated Power (kW)	Standby power (kW)	Fuel consumption rate (g/kW.h)	Oil consumption rate (g/kW.h)	Exhaust temperature (℃)	Total capacity of lubricating oil (L)
WD129TAD23	135x150	12.9	1500	235	259	198	≦0.67	≦650	40
WD129TAD25	135x150	12.9	1500	258	284	198	≦0.67	≦650	40
WD135TAD28	138x150	13.5	1500	280	308	198	≦0.67	≦650	40
WD145TAD30	138x160	14.5	1500	309	340	198	≦0.67	≦650	40
WD145TAD33	138x160	14.5	1500	339	373	198	≦0.67	≦650	40
WD145TAD35	138x160	14.5	1500	353	388	198	≦0.67	≦650	40

Main technical parameter of WD series 12 cylinder diesel engine (power range 382kw-730kw)

Model	Bore x Stroke (mm)	Displacement (L)	Rated Speed (r/min)	Rated Power (kW)	Standby power (kW)	Fuel consumption rate (g/kW.h)	Oil consumption rate (g/kW.h)		Exhaust temperature (℃)	Total capacity of lubricating oil (L)
WD269TAD38	135x150	26.9	1500	382	420	198	≦0.67	≦600		50
WD269TAD41	135x150	26.9	1500	418	460	198	≦0.67	≦600		50
WD269TAD43	138x150	26.9	1500	432	475	198	≦0.67	≦600		50
WD269TAD45	138x150	26.9	1500	465	512	198	≦0.67	≦600		50
WD269TAD48	138x150	26.9	1500	482	530	198	≦0.67	≦600		50
WD269TAD50	138x150	26.9	1500	506	556	198	≦0.67	≦600		50
WD269TAD56	138x150	26.9	1500	562	618	198	≦0.67	≦650		50
WD287TAD58	138x160	28.7	1500	588	647	198	≦0.67	≦650		50
WD287TAD61L	138x160	28.7	1500	618	680	198	≦0.67	≦650		50
WX287TAD68	138x160	28.7	1500	682	750	198	≦0.70	≦650		50
WX287TAD73	138x160	28.7	1500	730	803	200	≦0.70	≦650		50

Characteristics:

a.Strong power, reliable operation and high performance-price ratio. The shape and installation dimension are the same as the original X6138 series diesel engine, which meets the interchangeability requirements of the whole engine.

b.According to the characteristics of generator set when arrange structure layout, having reasonable and compact appearance, stronger adaptability.

c.Adopting P-type fuel pump with advanced fuel injection technology of Bosch Germany and CTT supercharger to match. While achieving good economy, the max. combustion pressure of the product is strictly controlled.

d.Meeting the requirement of humanized development of modern diesel engine. Optimizing the sealing and appearance of diesel engines to enhance the working reliability and safety.

e.Fuel supply system adopts electronic control, which can execute instructions quickly and accurately, ensure the smooth operation of diesel engines, meet the needs of high-grade power plants and the parallel operation of units, and provide fine-tuning devices for users to use.

diesel engines

Technical parameter of Wuxi WD series diesel engine WD145TAD30, it can match with prime power 280kw or standby power 308kw diesel generator set.

Model	WD145TAD30
Standby power (kW)	340
Rated speed ( r/min)	1500
Rated power (kW)	309
Fan power consumption (kW)	11
Bore x Stroke (mm)	138*160
Number of Cylinders	6 in line
Noise level (dBA)	109
FSU	≦1.5
Displacement (L)	14.5
Compression ratio	15.2:1
Intake mode	Turbo
Max. Inlet resistance (kPa)	6.2
Air consumption (m3/h)	2000
Exhaust back pressure (kPa)	6
Exhaust flow (m3/h)	4100
Exhaust gas temperature (℃)	≦650
Cooling way	Radiator water box
Fan exhaust flow (m3/h)	25000
The total capacity of the cooling fluid (L)	64
The max. water temperature (℃)	95
Thermostat range (℃)	72~84
The max. oil temperature (℃)	100
The total capacity of the lubricating fluid (L)	40
Min. Low fuel consumption (g/kW.h)	198
Diesel oil consumption (g/kW.h)	≦0.67
Speed mode	Electric
Flywheel teeth	125
Battery capacity (AH)	2x150AH 12V
Dimensions( LxHxW)mm	2305x1170x1550
Packing dimensions of engine (CM)	220110155
Net weight (Ton)	1.39
Oil model (Non-cold area)	CF#15W/40
Fuel mode (Non-cold area)	0# or -1#

Consumable accessories of Wuxi power diesel genset have high versatility, follow-up maintenance costs are relatively low and it is a reliable standby power station.

Starlight power manufacturer has cooperated with Wuxi power for many years, and our diesel generators have approved by ISO and CE standard. Starlight series Wuxi power diesel generator set power range is from 275kw to 1320kw, welcome to contact us.
