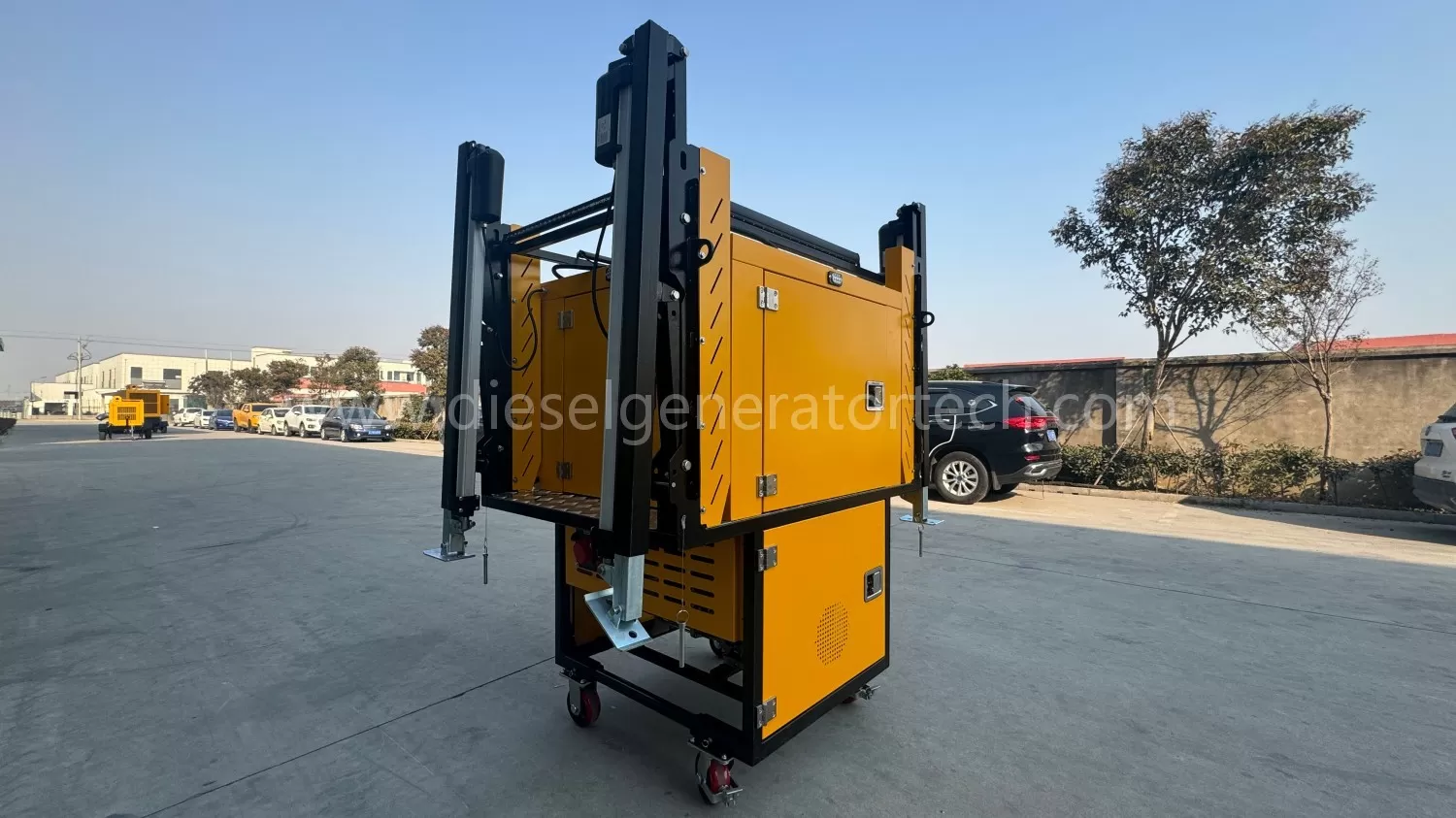

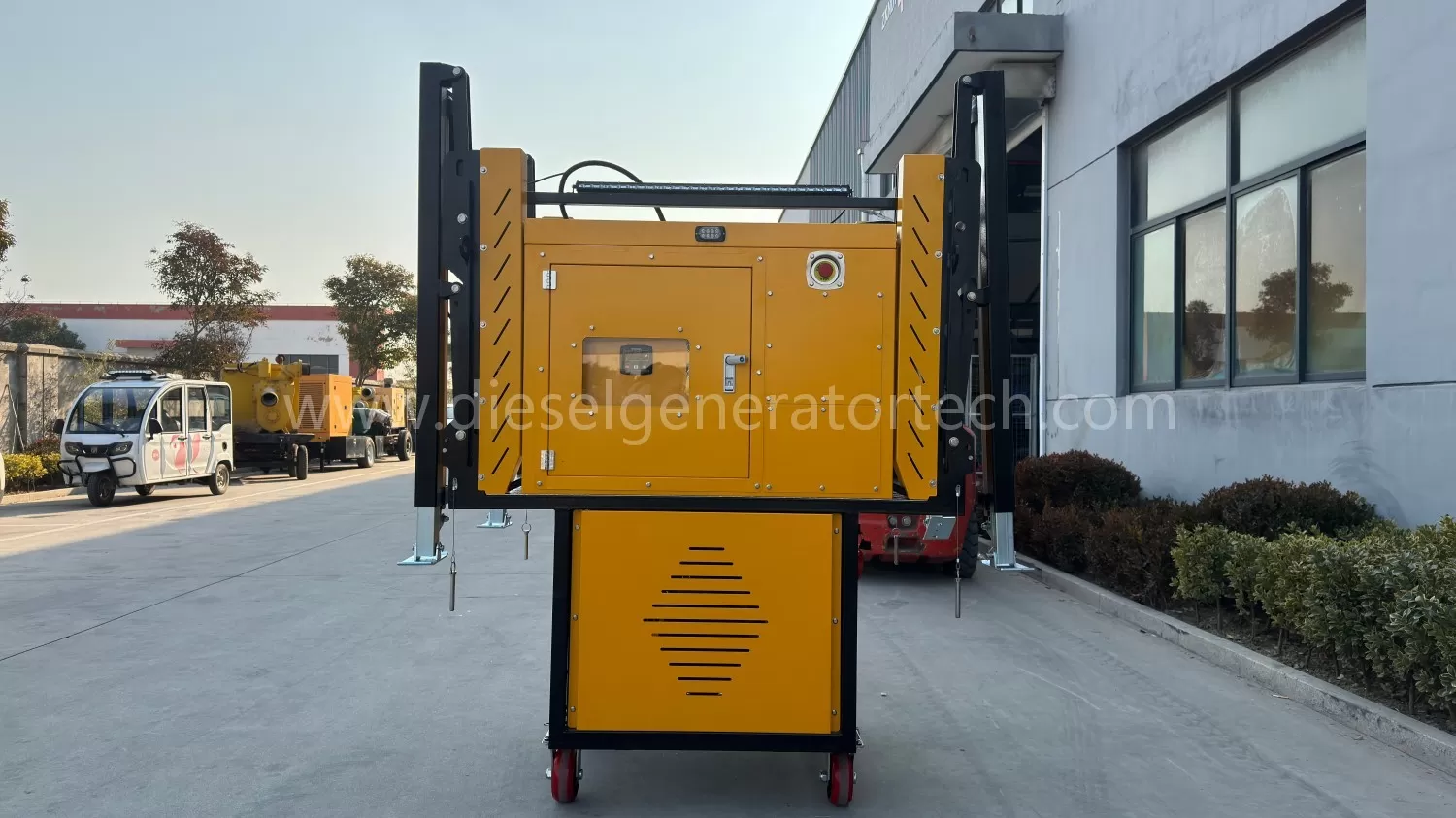

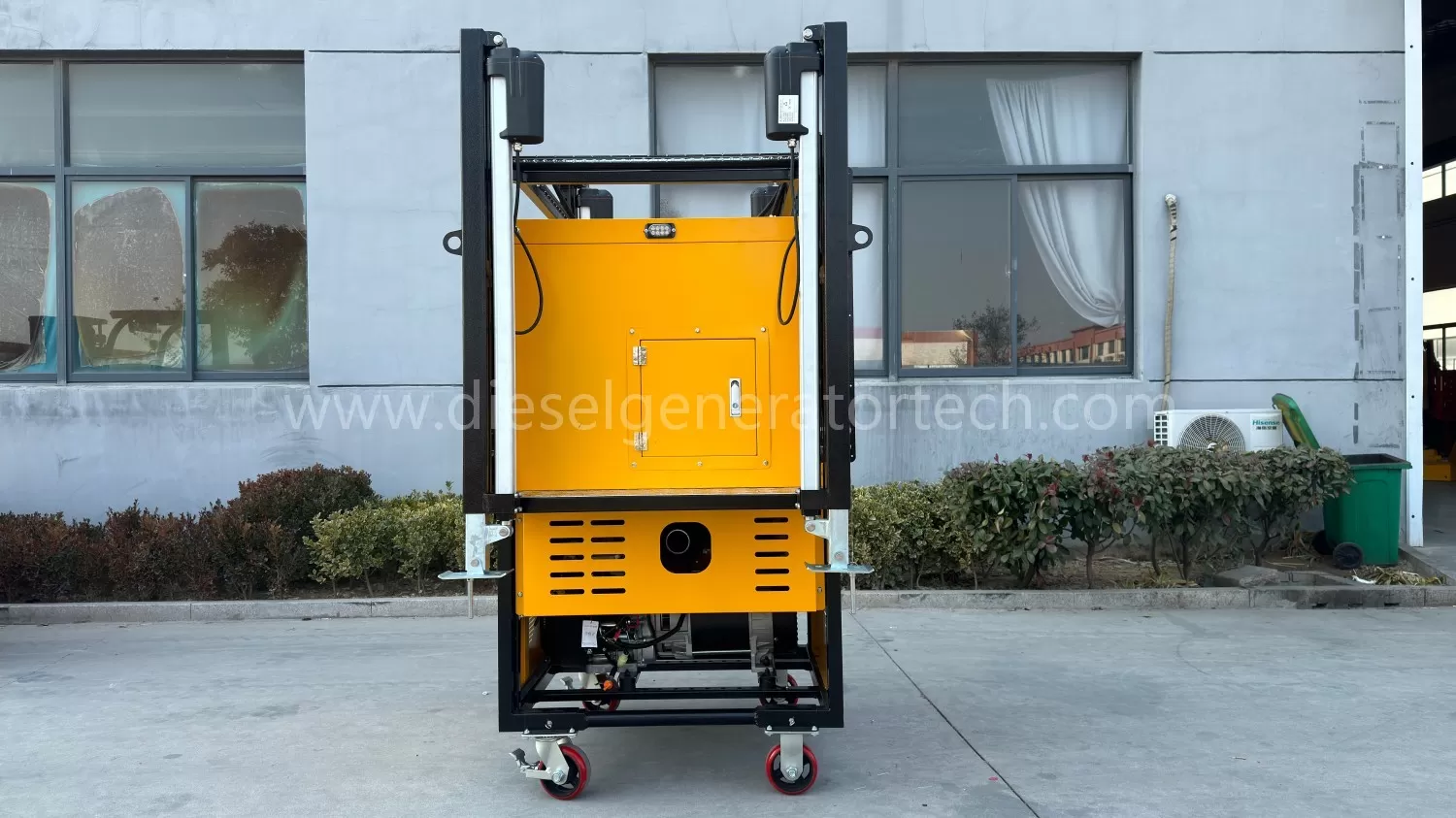

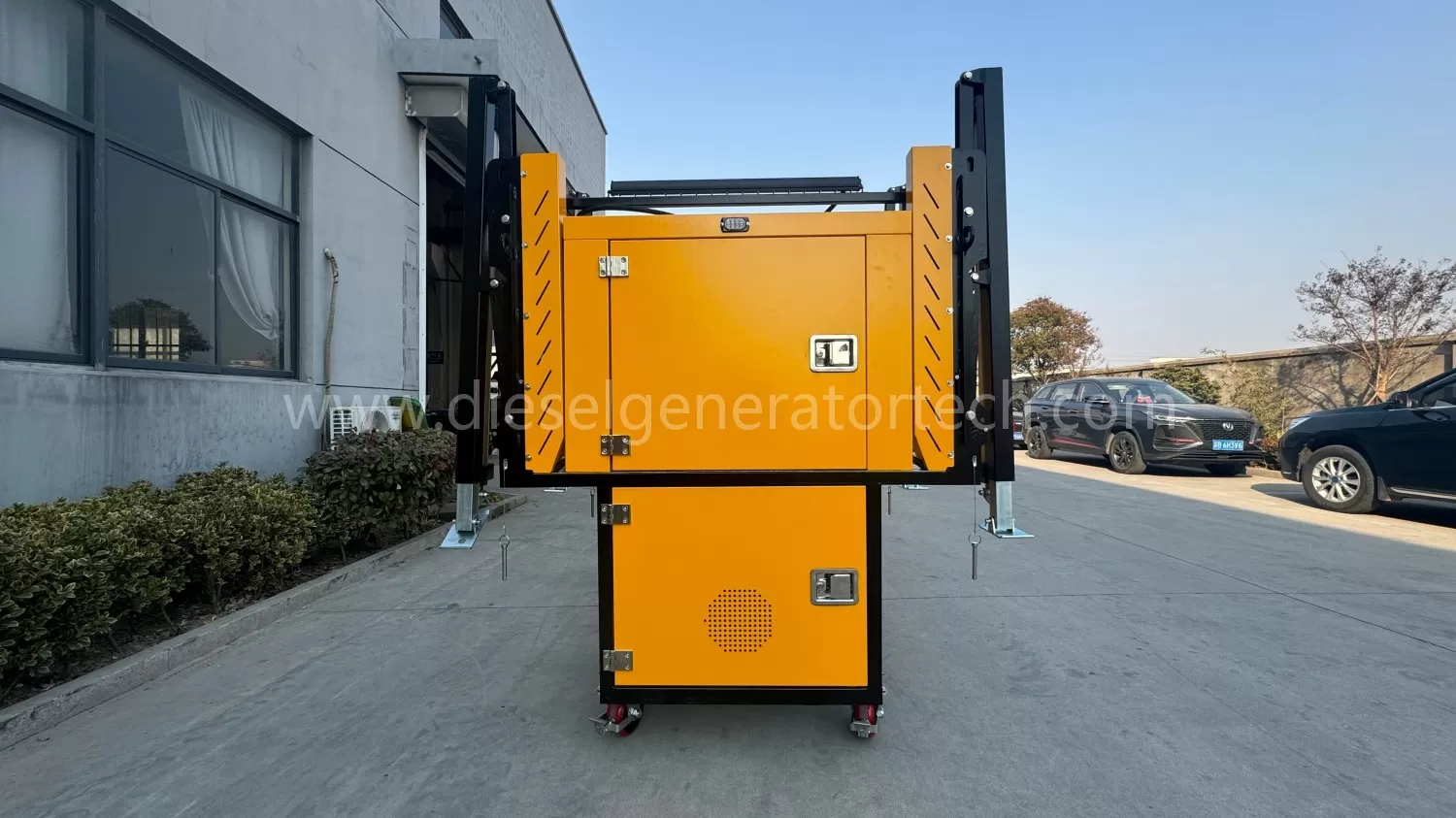

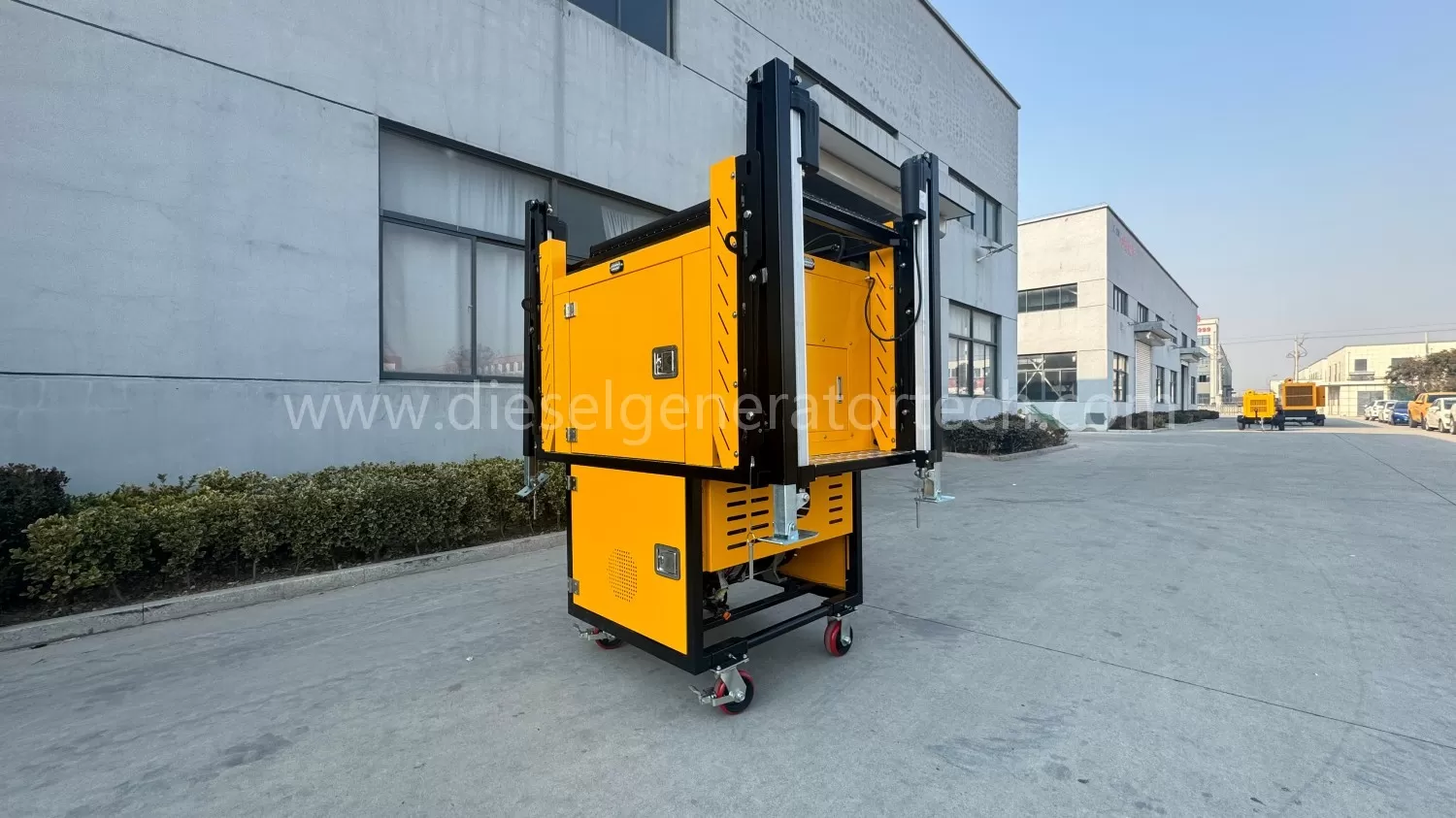

Self-loading and unloading mobile emergency drainage cabin lighting power generation in one

The emergency drainage cabin is a mobile drainage device that can be quickly installed and disassembled. The self-loading and unloading drainage cabin is composed of a generator set, a submersible pump, a control box, a caster, a frame, a fuel tank and an automatic electric lifting device. It can be transported to the scene after a disaster quickly and remove the water accumulation in the affected area with its powerful drainage capacity to reduce the impact of the disaster. Meanwhile, the drainage cabin also has functions like power generation and lighting, which can provide necessary power support for the disaster areas even at night.

1. With flows of 350m³/h and 500m³/h and head of 8m to 10m.

2. Optional gasoline generator set or diesel generator set, with a power capacity of 18kw and 30kw.

3. Self-loading and unloading drainage cabin is small in size and light in weight.

4. This is a reasonably structured drainage cabin. Its enclosure is made of high quality galvanized steel plate with thickness not less than 2.0mm. Each steel plate has been sandblasted for rust prevention and anti-corrosion and used 300 degrees high temperature spray paint process. The equipment is equipped with a water pump cabin, a water hose cabin and a generator set cabin, which can meet the observation, operation, overhaul and maintenance of the genset control system.

5. Self-loading and unloading drainage cabins are suitable for pickups or minivans and can be unloaded and loaded quickly.

6. Handling mode: The electric support legs lift the equipment to facilitate the vehicles to transport the equipment.

7. Method of unfolding and folding the loading and unloading legs: Electric or remote control

Features and benefits

Quick installation and disassembly: The drainage cabin adopts automatic loading and unloading technology. It can be quickly installed and disassembled, which improves the emergency response speed.

Efficient drainage capacity: Equipped with efficient pumps, the drainage cabin can quickly remove the water in the affected area, reducing the impact of the disaster.

Multifunction integration: In addition to the drainage function, it also has the power generation and lighting functions, which can provide a full range of emergency support for the disaster areas.

Intelligent operation: Some drainage cabins are equipped with an intelligent LCD control panel, which can achieve one-click operation. The equipment can be left unattended and users can monitor and control it remotely.

Adaptation to complex environments: The self-loading and unloading mobile drainage cabin has the automatic lifting function. It can flexibly cope with various complex environments, such as complex and changeable terrain conditions or adjust the working height according to the actual drainage needs.

Good sealing performance: The fixed drainage cabins have good sealing performance and can provide environmental protection for the equipment.

Applications:

Urban water logging: In the case of urban waterlogging, the drainage cabin can quickly reach the area with serious seeper and discharge the water quickly through its efficient pumps, reducing the pressure of the urban drainage system and restoring the normal operation of the city as soon as possible.

Flood disaster: In the face of flood disasters, the drainage cabins can reach the disaster areas in the first time and use their powerful drainage capacity and power generation function to provide the necessary power and lighting for the disaster areas, ensuring the smooth progress of rescue work.

Road drainage: When the traffic is blocked by the road water-logging, the drainage cabins can quickly carry out the drainage work. They can reduce the water level and restore the flow of traffic, reducing the traffic delay and safety hazards caused by the flooded road.

Fire emergency water supply: In addition to the drainage function, the drainage cabins can also be used for fire emergency water supply, especially in the case of a long distance between the water source and the fire site. The drainage cabin can be used as a temporary water supply point to provide water for the fire fighting truck.

Flood control rescue: During the dyke rescue, the drainage cabin can carry out drainage operations in a safe area near the dyke. It can reduce the water level of the flooded area and gain time and space for the emergency personnel to repair the dyke and prevent the occurrence of levee failure accidents.

Reservoir safety: When the water level of the reservoir rises sharply due to heavy rain, the drainage cabin can assist the drainage and reduce the pressure of the reservoir. It ensures the smooth flow of the flood discharge channel and the safe operation of the reservoir.

Mountainous area drainage: In the case of flash floods caused by heavy rains in mountainous areas, the drainage cabins can quickly maneuver along mountain roads and carry out drainage operations in villages, farmland and other areas flooded by flash floods to reduce disaster losses.
