150 KW Yuchai Generator Set Common Rail Low Pressure Oil Circuit

Feb. 03, 2024

The 150 kW Yuchai generator set has the advantages of compact structure, stable operation, good speed regulation performance, low fuel consumption, low emissions, and low noise. So do you know which components make up the common rail low-pressure oil route of the Yuchai generator set?

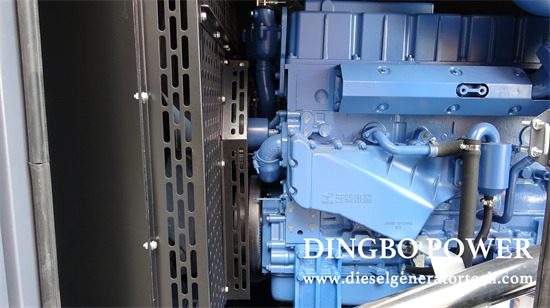

diesel generating set


The low-pressure fuel supply part of the electric high-pressure common rail fuel injection system for a 150 KW Yuchai generator set includes a fuel tank (with a filter), a fuel pump, a fuel filter, and a low-pressure oil pipe, as shown in the table.


The Function and Application of Low Pressure Oil Circuit System Components in the Common Rail Diesel Engine of Yuchai Generator Set


Fuel tank: The fuel tank must be corrosion-resistant and able to withstand at least twice the actual working oil pressure, while still maintaining a seal at a pressure of no less than 0.03MPa. If the fuel tank experiences overpressure, it needs to be automatically depressurized through appropriate channels and safety valves. Even if the vehicle tilts, drives in curves, or even collides, fuel will not flow out of the fuel tank or pressure balancing device. Meanwhile, the fuel tank must be kept away from the diesel engine to reduce the risk of fire in the event of a traffic accident.


Low pressure oil pipe: In addition to using copper pipes, flame-retardant flexible pipes with steel wire braided layers can also be used in the low-pressure oil supply section. The arrangement of the oil pipe must be able to avoid mechanical damage, and the fuel dripping on it cannot accumulate or be ignited.


Fuel transfer pump: A fuel transfer pump is an electric or gear pump with a filter, which sucks fuel out of the fuel tank and continuously supplies the required fuel to the high-pressure pump.


Filter: The fuel filter of the Yuchai generator set will filter and purify the fuel entering the high-pressure pump, removing impurities from the fuel, thereby preventing premature wear and damage to precision components such as the release pump, oil outlet valve, and fuel injector.


Founded in 1974, Dingbo Power Generation Equipment Co., Ltd. is a professional manufacturer of diesel engines, generators and generator sets, and one of the earliest manufacturers of diesel engines, generators and generator sets in China. Since 1992, the company has been a qualified generator set manufacturer inspected by the National Internal Combustion Engine Generator Set Quality Supervision and Inspection Center. Over the years, the company has carried out extensive cooperation with Shanghai Diesel, Weichai, Sweden Volvo, Sino US joint venture Chongqing Cummins, American Qianglu and other companies, and has become a (OEM) supporting factory and technical center. It has 64 sales service departments nationwide, providing users with design, supply, commissioning and maintenance services at any time. Dingbo quality is worth depending on. If you want get more information, please feel free to send email to sales@dieselgeneratortech.com we will pay highly attention on your question.
