800KW Cummins Diesel Generator Set Technical Specifications

Apr. 29, 2020


Soundproof 800KW Cummins diesel generator set is supplied by Dingbo Power factory, the article is mainly about its technical specifications.


1. Soundproof 800KW Cummins Generator Set

Item model: XG-800GF

Prime power:800kw/1000kva

Standby power: 880kw/1100kva

Diesel engine: Cummins KTA38-G5

Alternator: Stamford LVI634E1

Controller: Deep Sea 7320

Speed/frequency: 1500rpm/50Hz

Power factor: 0.8Lag

Rated voltage: 230/400V

Phase: 3 phase, 4 wire

Overall size of the genset: 6000x2600x2800mm

Net weight: 12300kg

Manufacturer: Guangxi Dingbo Generator Set Manufacturing Co.,Ltd.,

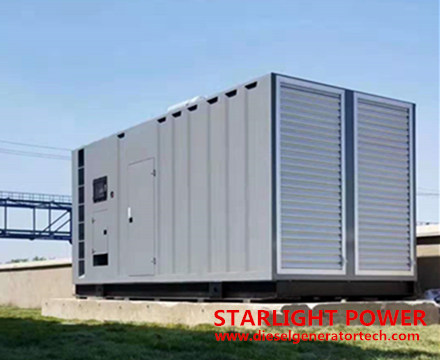

800KW Cummins Diesel Generator Set Technical Specifications


2. Feature of soundproof 800kw Cummins DG Set

  • Low fuel consumption, high efficiency, compact structure, environment friendly.

  • Heavy load durable, four-stroke, water cooled engine.

  • Protection Standard: IP23

  • Insulation Grade: H

  • Steady state voltage regulation rate: ≥±2.5%

  • Voltage fluctuation rate: ≤ ±0.5%

  • Steady state frequency regulation rate: ≤0.5%

  • Frequency volatility rate: ≤1%

3. Feature of Soundproof Containerized Canopy Box

  • Super silent materials inside to ensure the noise lower than 75dB 7 meters away

  • Emergency stop button mounted outside

  • Side lockable door easy for maintenance and installation

  • Effective anti-vibration devices to ensure the generator set run steadily

  • Good ventilation system and anti-heat radiation struction

  • Stainless steel locks

  • Control panel viewing window for monitoring the status of the generator set

  • Lube oil and cooling water drains piped to exterior of the canopy

  • With special treated steel sheet


 800KW Cummins Diesel Generator Set Technical Specifications


4. Cummins Engine KTA38-G5 Technical Specification

  • Full new engine

  • Four valves per cylinder, stainless steel crankshaft,bolt,cast iron steel, replaceable humid cylinder liner

  • High quality air filter, fuel filter, oil filter etc.

  • Gen-sets equipped with dual flexible fuel pipe


Engine Model

Cummins KTA38-G5

Manufacturer

Chongqing Cummins Engine Co.,Ltd.

Prime power

881kw

Standby Power

970kw

Speed

1500rpm

Governor Type

Electronic

Start mode

24V DC Electric start

Bore x Stroke

159x159mm

Cooling way

Water cooled

Air intake type

Turbocharged and after Cooled.

Exhaust system

Industrial heavy efficient muffler and bellows elastic connector.

Filtration system

Adopt dry cylinder type air filter, shell type diesel filter and oil filter, all filters can be changed.

Fuel system

Cummins PT direct injection

Fuel consumption at 100% prime rated

202g/kW.h


5. Stamford LVI634E1 Alternator Technical Specifications

Standards: BS EN 60034, BS5000, VED5030, NEMA MG1-32, IEC34, CSA C22.2-100, AS1359


Alternator model

Stamford LVI634E1

Manufacturer

Cummins Generator Technologies(China) Co.,Ltd.

Excitation Mode

Brushless and self- exciting

Voltage Regulation

AVR automatic voltage regulation

Bearing

Single bearing

Alternator Efficiency

95

Protection Level

IP23

Insulation Class, Temperature Rise

H/H

Power capacity

1000kva

Phase

3 phase, 4 wire



6. Controller Deep Sea 7320 technical specification

Auto Mains (Utility) Failure Control Module.

The DSE7320 MKII is a powerful, new generation Auto Mains (Utility) Failure genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications.



Controller model

DSE 7320

Manufacturer

UK Deep Sea

Automatic start/stop function

Included

Digital display instrument

Can display genset operation status and various parameters

Battery charger

Including Automatic Mains Charger











System to be displayed in control box

Phase voltage

Frequency

Apparent power

Power factor

Power monitoring (kW.h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection

Oil pressure

Battery voltage

Start up time

Generator line voltage

Genset running hours

Total KW

Coolant temperature

More details, please refer the manual

Control system fault protection (warning and shutdown) function

High water temperature

Low oil pressure

Battery voltage high (low)

Generation overload

Over (under) voltage of generator

Over (low) frequency of generator

Voltage imbalance

Current short circuit

Uneven current

Over speed

More details, please see the manual.


Jiangsu Starlight company has focused on high quality, high performance, low fuel consumption diesel generator set for more than 43 years. We are not only OEM supplier of Cummins engine of genset, but also other engine brand, such as Volvo, Perkins, Deutz, Yuchai, Shangchai, Ricardo, Weichai etc. Diesel generator power range is from 20kw to 3000kw, if you have purchase plan, welcome to contact us by email sales@dieselgeneratortech.com.
