Correction Method the Center Line of DEUTZ Diesel Generator Set 2

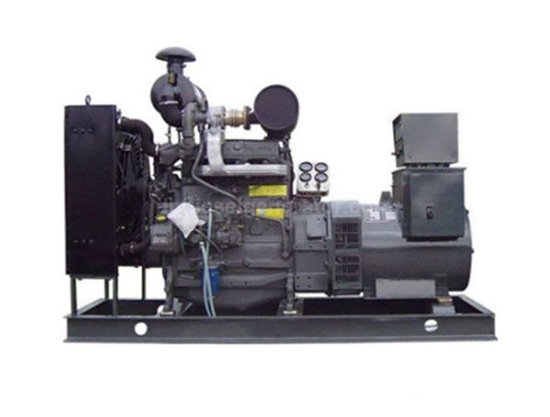

Next, Guangxi Dingbo Generator Set Manufacturing Co.,Ltd. will continue to introduce the calibration method for the centerline of internal combustion engine and DEUTZ diesel generator set.

(3) Adjustments.

Interleaving quantity

The correction method is: loosen the four base screws of the DEUTZ diesel generator set generator, slightly lift the base of the DEUTZ diesel generator set generator, and properly reduce the base gasket [increase or decrease (mm) - the distance between the front and rear bases of the DEUTZ diesel generator set generator (m) × Stagger (mm/m)], then level the DEUTZ diesel generator set generator (at this time, the DEUTZ diesel generator set generator may move a little, and it should be restored to its original position), and tighten the four base screws. Finally, a review should be conducted, and if it does not meet the requirements, correction should be made. The basic rule for adjusting the amount of interlacing is: cushion the tail with a small amount on top, and remove the tail with a large amount on top and a small amount on bottom. That is, when the distance between the parallel screw on the top and the round iron is greater than the distance between the parallel screw on the bottom (rotate the flywheel by 180 °) and the round iron during measurement, use shims to pad the tail of DEUTZ diesel generator set to adjust the amount of interleaving.

In the same way, when the distance between the parallel screw on the top and the round iron is less than the distance between the parallel screw on the bottom and the round iron during measurement, the gasket at the rear of the DEUTZ diesel generator set should be removed properly to adjust its interleaving amount.

Offset

The correction method of offset is: loosen the four screws of the generator base of DEUTZ diesel generator set, and properly adjust the thickness of the front and rear gaskets of the base [increase/decrease - offset].

(4) Rotating the flywheel

Place the special tool on the left and right sides in a horizontal direction. Use the same method as above to check the left and right (front and rear) directions of the interleaving and offset. If the interleaving and offset of the two shaft centerlines in the left and right (front and rear) directions exceed the allowable limit, the DEUTZ diesel generator set generator should be moved for correction. When correcting, it is necessary to first correct the orthogonal error and then correct the offset.

(5) Review

After correcting the offset and offset of the centerline of DEUTZ diesel generating set generator and internal combustion engine crankshaft, recheck until the offset and offset of the centerline of internal combustion engine and DEUTZ diesel generator set generator meet the requirements.
