Introduction to 1000KW and 800KW Perkins Generators

Starlight series Perkins generator sets are officially authorized products of Perkins, which have better performance, better quality and more guaranteed service among similar products, and are recommended by Starlight diesel generator set department.

1000KW Perkins generator set principle

In the cylinder of the diesel engine, the clean air filtered by the air filter is fully mixed with the high-pressure atomized diesel fuel injected by the fuel injector. Under the upward extrusion of the piston, the volume decreases and the temperature rises rapidly, reaching the ignition point of the diesel fuel. The diesel fuel is ignited, the mixed gas burns violently, the volume expands rapidly, and pushes the piston downward, which is called "work". Each cylinder works in a certain order, and the thrust acting on the piston turns into the force pushing the crankshaft to rotate through the connecting rod, thus driving the crankshaft to rotate. When the brushless synchronous alternator and the crankshaft of the diesel engine are installed coaxially, the rotation of the diesel engine can be used to drive the rotor of the generator. By using the principle of 'electromagnetic induction', the generator will output the induced electromotive force and generate current through the closed load circuit.

800KW Perkins generators performance

1. Electrical performance:

Comply with GB2820 and ISO8528/3 standards. It also meets the technical requirements of YD/T502 special diesel generator set for communication in the post and telecommunications system.

Rated voltage: 400/230V

Wiring mode: 3-phase 4-wire

Frequency: 50Hz

Rated power factor: 0.8 (lagging)

Suppression of radio interference: comply with VDE0875-N and GB2820

2. Unit standard:

Comply with the provisions of GB/T2819, ISO8528, IEC34 and other international standards;

The rated output power of generator unit conforms to;

The altitude shall not exceed 1000 meters;

Ambient temperature 0 ℃~40 ℃;

Air relative humidity 60%;

3. Alternator

Excitation mode: brushless self-excitation

Insulation grade: H

Protection grade: IP21~IP23

Voltage regulation: automatic regulation

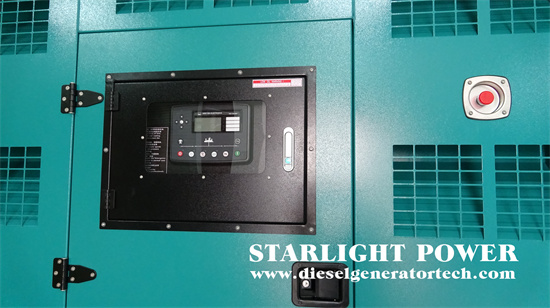

4. Control box:

There are different types of control boxes, such as manual, automatic, remote monitoring, fully automatic and intelligent. The basic configuration includes voltmeter, ammeter, water temperature gauge, oil pressure gauge, controller, emergency stop button, preheating button, battery voltmeter, schedule, phase selection switch, etc.

Jiangsu Starlight Power Generation Equipment Co., Ltd. was founded in 1974 and is one of the earliest manufacturers of generators and diesel generator sets in China. The company has a registered capital of 218.88 million yuan. The company covers an area of 86,000 square meters and a building area of 55,000 square meters. There are more than 660 employees, including 456 professional technicians and 106 senior technicians. It has 46 sales and service outlets nationwide. The main products are diesel engines, generator sets, and diesel generators, providing users with a one-stop service of design, supply, debugging and maintenance at any time. Starlight has always insisted on using first-class talents, building first-class enterprises, manufacturing first-class products, creating first-class services, and making every effort to build a first-class domestic enterprise. If any question please feel free to visit our website https://www.dieselgeneratortech.com/ or send email to sales@dieselgeneratortech.com.
