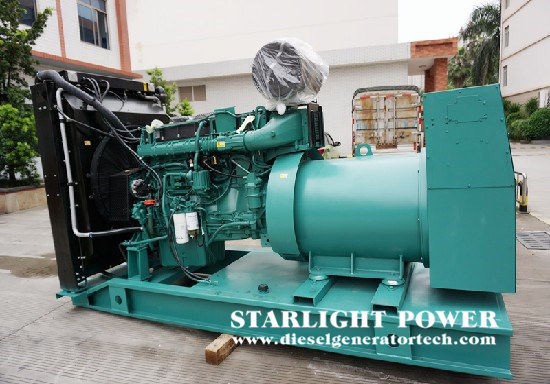

Speed Control Principle of Emergency Diesel Generator Set

The speed signal of the diesel generator set is used as the negative feedback signal in the closed-loop control system. The signal is proportional to the actual speed of the diesel generator set, and the speed setting value is adjustable. It is used as the parameter comparison reference in the control system, and compared with the actual value of the speed feedback system to obtain a deviation signal. After the deviation signal is processed by a specific PID (proportional/integral/differential) operation, it forms a signal to increase or decrease the throttle, The speed of the diesel generator set will increase or decrease with the increase or decrease of the throttle, and the actual speed of the diesel generator set will be fed back to the governor for comparison. The speed of the diesel generator set will be stabilized at the set value, and the fuel improvement of the diesel generator set can reduce pollution.

If the diesel generator set is not fully burned, it is easy to cause air pollution, and even endanger the personal safety of operators in serious cases. Some methods can be used to improve fuel to reduce pollution. Fuel mixed with water The method of mixing fuel with water includes water injection from the intake pipe and emulsification of diesel oil.

1. Spray water into the water inlet pipe

The main function of water spray in the intake pipe is to absorb heat and dilute the fuel density. When a small amount of water enters the combustion chamber and is well atomized, the "micro explosion" effect of water vapor breaks the oil droplets into smaller oil droplets, thus promoting the formation and combustion of the mixture. During the combustion process, due to the heat absorption effect of water, the high combustion temperature can be reduced. For example, mixing water and oil can reduce the fuel density, and the high combustion temperature can be further reduced, Therefore, NOx emission is reduced. It should be noted that the water storage tank of diesel generator set should be antifreeze in winter, and the water spray volume should be adjusted automatically according to the load.

2. Emulsified diesel

Adding water to diesel oil, namely emulsified diesel oil, because of its "detonation" effect, makes its fuel atomized well, makes the air in the combustion chamber form strong turbulence, makes the distribution of fuel oil and air more uniform, reduces the generation of soot, and the water-gas reaction of water vapor also reduces the emission of soot. In addition, emulsified diesel oil can reduce the high combustion temperature, so the generation of NOx is reduced.

The above two methods are to promote the combustion of engine oil by adjusting the fuel. The harmful gas emitted by the diesel generator set will change naturally after combustion.
