Why Does Diesel Generator Emit Black Smoke

Diesel generators burn incompletely or do not burn in time, which can easily emit black smoke, while the temperature of diesel generators is low. There is air in the oil circuit or water in the diesel oil, which is easy to emit white smoke, causing the unit to emit blue smoke, which is often caused by engine oil. Caused by combustion in the combustion chamber. This article is Starlight Power introduces you to some of the reasons for the abnormal smoke color of diesel generators.

1. The main reason for the black smoke from the exhaust pipe is that there is less air in the cylinder, more fuel, incomplete fuel combustion or untimely combustion, which causes fuel leakage. Therefore, when checking and analyzing faults, you must focus on this click to find out the reason. When using the gas-by-gas method to check the oil cylinder, first determine whether it is a single cylinder that is not working well or the whole cylinder is not working well.

a. If a cylinder stops working and the black smoke disappears, the black smoke is caused by the poor work of individual cylinders. The reason can be found from the poor work of individual cylinders. This is mainly due to poor fuel injector operation, low fuel injection pressure, fuel dripping from the fuel injector, poor fuel injection quality, excessive fuel drop intensity and other reasons that cause incomplete diesel combustion. Therefore, when it is found that the diesel engine has intermittent knocking sound and uneven exhaust sound, indicating that there is a problem with fuel injection, the fuel injector should be checked and adjusted in time.

b. The stroke of the fuel injection pump adjustment rack or tie rod is too large, and the fuel supply is insufficient.

c. Insufficient air intake.

d. The contact surface between the end face of the plunger sleeve of the fuel injection pump and the outflow valve seat is not sealed, and the adjusting gear ring locking screw of the fuel injection pump or the plunger adjusting arm becomes loose, causing fuel supply failure and intermittent black smoke exhaust.

If the black smoke cannot be eliminated after each cylinder stops working, the reason should be found out as a whole.

(1) The diesel engine is overloaded. If the internal combustion engine is overloaded and the fuel supply increases, the fuel cannot be fully burned, and its exhaust will emit black smoke. Therefore, if you find black smoke in the exhaust pipe, the diesel engine speed cannot be increased, and the exhaust noise is particularly loud, indicating that the diesel engine is overloaded. Usually it will be improved as long as the load is reduced.

(2) The oil supply is ahead of schedule. When the pressure in the cylinder is low, the fuel supply time is added ahead of schedule, so that part of the diesel fuel is incompletely burned, forming carbon particles, which are ejected from the exhaust pipe, and appear gray-black. The oil supply time needs to be adjusted.

(3) The air filter is blocked, and the diesel engine will emit black smoke if the air intake is insufficient. If the diesel engine emits smoke at high speed and low speed, air filtration test should be carried out. If the smoke disappears immediately, the air filter is blocked and must be cleaned immediately.

(4) The quality of diesel is not up to standard, which affects atomization and combustion.

2. White smoke from the exhaust port indicates that the fuel entering the cylinder is not burned, but becomes fog and steam under the action of a certain temperature. Due to the low temperature, a lot of white smoke is emitted, there is air in the oil circuit or the diesel contains water. If it is low temperature, when the temperature rises, the white smoke will disappear automatically. Strictly speaking, it is not a cause, but no need to deal with it. If water is contained in the air or diesel oil on the oil road, the characteristic is that in addition to white smoke when discharged, the diesel engine will fluctuate and run unstable when it is running. If white smoke is emitted, it may be caused by cracks in the bottom of a single cylinder head or cylinder liner, or poor sealing of the cylinder head gasket.

3. Blue smoke from the exhaust pipe is mainly caused by the burning of the oil entering the combustion chamber. The inspection should be from easy to difficult. First, check whether there is oil in the oil cylinder, and then check the air filter oil tank and the filter element for excessive oil. Other reasons are difficult to detect. In addition to the method of stopping the work cylinder by cylinder, the cylinder head should be further inspected, and the piston and valve should be removed to determine whether the blue smoke is caused by the abnormal operation of a single cylinder or the entire cylinder. Generally, an indirect method is used to judge, that is, according to the service life of the diesel engine, if the diesel engine has blue smoke when it is close to overhaul, it is generally because of problems with the piston, cylinder, piston ring, valve and valve guide, which should be eliminated through maintenance.

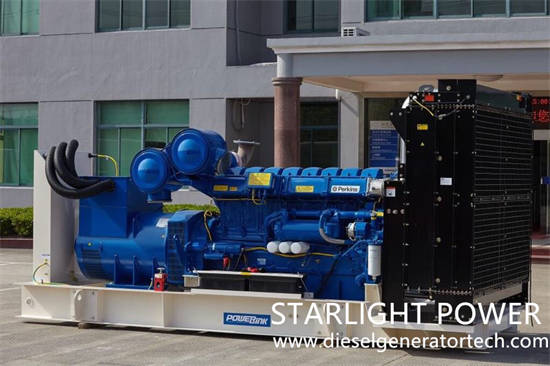

Jiangsu Starlight Electricity Equipments Co.,Ltd. is a manufacturer of professional generators, diesel generator sets, Cummins generator sets, Volvo generator sets, etc. The company has advanced testing equipment, excellent production technology, professional manufacturing technology, perfect quality management system, and Strong R&D technical strength. It can provide 15KW-2500KW various specifications of universal, automatic, four protection, automatic switching, low noise and mobile, etc., high-quality, low-energy generating sets to meet customer power needs, and can also meet users' different voltages and different frequencies, as well as the power supply system of multiple units connected in parallel, welcome customers to inquire. For more details, please contact us with sales@dieselgeneratortech.com
