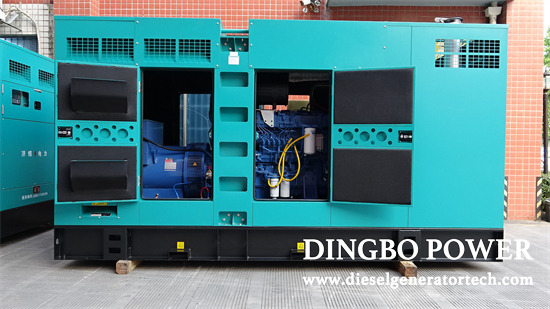

The Function of The Intake System for 80KW Silent Generator

The 80kw silent generator has significant low noise performance, with a unit noise limit of 75dB (A) (1m away from the unit), in compliance with relevant national standards such as GB2820-90. So do you know what the function of its air intake system is?

The function of the 80kw silent generator intake system is to ensure that the intake system of the diesel engine and the cooling system of the unit have sufficient fresh and dust-free air intake, while reducing the noise radiated from the intake of the generator set to the outside. The intake system mainly consists of intake isolation screen windows, filters, intake boxes, etc. The required large area air intake system structure with rain and anti-theft function on the upper part of the casing box, and the unit water tank must be in front to protect the intake and thermal circulation of the generator set.

1. 80kw Silent Generator Exhaust System

The exhaust sound absorption channel can be composed of a guide groove and an exhaust noise reduction box. The exhaust system is equipped with rain and anti-theft functions on both sides of the front of the box, and has a pre installed noise reduction chamber.

2. 80kw Silent Generator Exhaust System

The exhaust system is a channel for the exhaust gas generated after the operation of the gas turbine to be discharged into the external atmosphere. It consists of a smoke exhaust muffler, corrugated flexible connecting pipes, self-supporting exhaust valves and supporting components, automatic rain caps, etc. Require the use of the engine exhaust pipe with the shortest loss and the minimum upper exhaust method. The exhaust gas should be directly connected to the outside atmosphere through the exhaust pipeline and cannot be directly discharged inside the soundproof box.

3. 80kw silent generator output connection method:

Wiring method: In order to ensure convenient and fast use, as well as safe and reliable wiring, the quick connector needs to be connected using an imported quick plug quick insertion method (the corresponding cable model needs to be connected with the design unit). At the same time, the generator set needs to be equipped with corresponding copper busbar wiring methods under full load conditions.

4. The total output of the generator set should be equipped with a plastic shell electric switch (ABB, Siemens, Schneider or equivalent quality level), with a rated current of 160A.

5. The top of the box is equipped with inverted lighting and two sets of floodlights.
