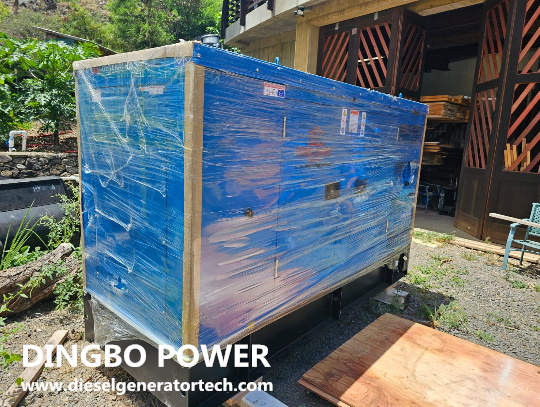

On March 1st, 2023, Dingbo Power started to arrange the production of a prime power 90kw diesel generator for a client from Hawaii. The product was delivered to the client successfully after completing production. Thanks for the client’s trust and support.
This 90kw diesel genset mainly consists of a Perkins 1104D-E44TAG2 diesel engine, an original Stamford UCI274G14 alternator and a SmartGen HGM7220 controller. The Perkins 1100 Series 1104D-E44TAG2 ElectropaK provides a prime power 100kw and a standby power 111kw at 1800 rpm. The engine has been developed to provide a clean and cost effective power solution. Hitting the key power nodes required by the market, this engine model offers a power solution for both Prime and Standby applications, in 60 Hz territories. The 1104D-E44TAG ElectropaK range has been designed to fully comply with stringent EPA Tier 3 emissions regulations, providing an emissions compliant power solution for the future.
| Manufacturer | Perkins |
| Model | 1104D-E44TAG2 |
| Net Engine power-prime/standby | 100kW /110kW |
| Frequency & Speed | 60Hz ,1800rpm |
| Number of cylinders & Type: | 4 in-line, 4 stroke, diesel engine, water-cooled |
| Aspiration: | Turbocharged air-to-air chargecooled |
| Bore*stroke | 105 mm x 127 mm |
| Displacement | 4.41L |
| Compression Ratio | 16.2:1 |
| Governor | Electronic speed governor |
| Starter motor voltage: | 24V DC |
| Combustion system | direct injection |
| Total Lubrication System Capacity | 8L |
| Total Coolant Capacity | 17L |
| Fuel consumption-standby power (100%) | 30.0L/h |
| Fuel consumption-prime power (100%) | 27.7L/h |
| Fuel consumption-prime power (75%) | 22.0L/h |
| Fuel consumption-prime power (50%) | 16.0L/h |
The genset is equipped with a soundproof box and and sound dampening materials to reduce engine noise and ventilation, which can help to regulate the air circulation. When it is operating, the noise level can be reduced to 75dBA at 7 meters. This type of generators are suitable for environments that require quiet conditions. Compared to open type diesel generators, silent generators are more quite easy to place anywhere, because they have a closed shape that are compact and light.
This 90kw diesel generator is equipped with a built-in type Automatic Transfer Switch (ATS), which can seamlessly turn the backup power on during a utility outage. An ATS can restore power to your home within seconds, as opposed to a manual switch which could more than triple your down time. This makes it ideal for home backup applications. The generator set is designed with a 758L sub-base fuel tank, which can withstand frequent or extended blackouts.
The power and voltage requirements of your facility are crucial when selecting a diesel generator. It’s essential to understand the difference between a single-phase and 3-phase generator. Getting the right electrical configuration helps you decide what type of generator is best for your application.
Both single-phase generators and 3-phase generators can provide a power supply. But the former is commonly used in residential environments and should only be used with low-power appliances and equipment. The latter is more efficient and can handle more power, making them the go-to option for any industrial use. 3-phase gensets can provide both single and 3-phase power for running industrial motors with higher horsepower, branch power out for separate lines, and are in general more flexible. They are typically used in commercial environments.
Therefore, when you are looking for a diesel generator, choose the one that works best for you. Unsure which generator is suitable for your power requirements? You have questions, and we have answers. Feel free to contact us with any questions, concerns, or inquiries to learn more about the products & services we provide.
