Dingbo 800KW Container Silent Generator Set Exported to Thailand

Aug. 07, 2023

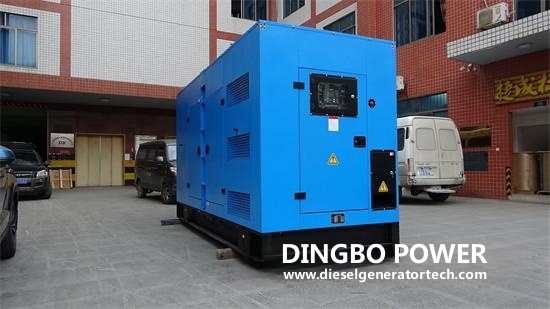

On 31th March 2020, Dingbo Power manufacturer exported one 800KW container silent diesel generator set to Thailand, shipment port is Shanghai China.



The 800KW container soundproof genset purchased by the user is matched with the high-power diesel engine produced by Yuchai and Wuxi Stamford generator. It has the advantages of compact structure, convenient operation, stable operation, low fuel consumption, low noise, etc. all performance indexes meet the requirements of CE, ISO9001, ISO14001 etc. In particular, the unit's container sound case has very high performance in noise reduction, rain proof, dust-proof, heat insulation, fire prevention, rust prevention and other aspects.


cummins Diesel Generator 100-2500 kVA



1.800kw container silent diesel generator set technical specifications

Genset model: DB-800GF

Prime power/capacity: 800kw/1000kva

Standby power/capacity:880kw/1100kva

Rated current: 1440A

Rated voltage: 220V

Rated speed/frequency: 50Hz/1500rpm

Power factor: 0.8lag

Noise level: 75dB at 7 meters

Steady state voltage regulation rate: ≥±2.5%

Transient voltage regulation rate: ≤+25% , ≥-15%

Voltage stability time : ≤3s

Voltage fluctuation rate: ≤ ±0.5%

Frequency stability time: ≤6s

Frequency Waving: ≤1.5%

Steady state frequency regulation rate: ≤0.5%

Transient frequency regulation rate: ≤ ±5%

Frequency volatility rate: ≤1%


2.Yuchai diesel engine technical specifications

Engine: Yuchai YC6C1320-D31

Prime power/capacity: 880kw/1100kva

Standby power/capacity:960kw/1200kva

Rated frequency: 1500rpm

No. of phase & wire: 3 phase 4 wire


3.Wuxi Stamford Alternator technical specifications

Model: LVI634E1

Protection: IP23

Overload: PRP110% load can run 1 hour

Excitation mode: Brushless and self-exciting

Voltage Regulation: AVR automatic voltage regulation



Guangxi Yuchai Machinery Co., Ltd. (hereinafter referred to as Yuchai Co., Ltd.) founded in 1951, is the first Sino foreign joint venture in the domestic industry to be listed abroad. Headquartered in Yulin City, Guangxi, the company has 11 subsidiaries. Its production bases are located in Guangxi, Jiangsu, Anhui, Shandong and other places. It is an internal combustion engine manufacturing base with complete product types and wide application fields in China. Its annual sales revenue is more than 20 billion yuan and the annual production capacity of the engine is 600000 sets.



Dingbo Power manufacturer has cooperated with Yuchai company for many years, we are OEM supplier of Yuchai diesel engine of generator set. In recent years, our sales of genset with Yuchai engine are very good at home and abroad. Power range is from 20kw to 3000kw, contact us to get more information.
