Guangxi Dingbo Signed Contract of 2 Sets of 500kW Cummins Genset

Aug. 01, 2023

Recently, Guangxi Dingbo Generator Set Manufacturing Co.,Ltd. signed a manufacturing agreement on two sets of 500KW diesel generators, which are powered by Chongqing Cummins engine KTAA19-G6A, and reached a cooperative relationship.

It is understood that Dingbo Power Group is responsible for the whole process from production to installation of the 500KW Cummins generator set. The signing of the cooperation between two sets of 500KW Chongqing Cummins generator sets marks another small step for Dingbo Power Group in the production and construction of diesel generator sets. In the future, under the principle of win-win cooperation, Dingbo Power Group will be responsible for maintaining two 500KW Chongqing Cummins generator sets and helping the customer manage the diesel genset.

deutz hatz cummins perkins volvo

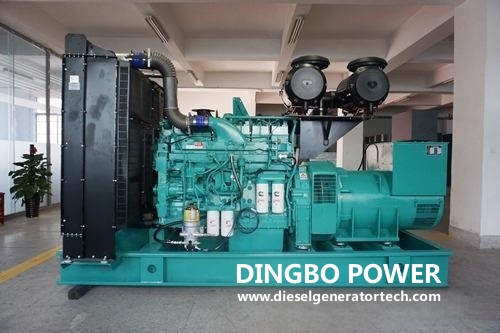

Here is main technical datasheet of 500kW/625kVA Cummins diesel generator set:

Specifications
Supplier	Guangxi Dingbo Generator Set Manufacturing Co.,Ltd.
Model	XG-500GF
Prime Power	500KW/625KVA
Standby Power	550KW/687.5KVA
Rated voltage	400V
Rated current	900A
Power factor	0.8LAG
Frequency	1500RPM
Speed	50Hz
Engine model	Chongqing Cummins KTAA19-G6A
Prime power of engine	N/A
Standby power of engine	610KW
Number of cylinders	6, inline
Bore and stroke	159 x 159 mm
Displacement	19 Liters
Aspiration	Turbocharged , Air-to-air Cooled
Cycle	4 stroke
Combustion system	Direct injection, Cummins PT
Compression ratio	13.9:1
Rotation	Anti-clockwise, viewed from flywheel end
Total lubricating capacity	84.4 litres
Cooling system	Water-cooled
Total coolant capacity	112 litres
Fuel consumption at 1500 rpm
Standby power(maximum)	216g/kw.h
Alternator	Cummins Stamford HCI544FS1
Prime power of alternator	500KW
Standby power of alternator	550KW
Insulation class	H
Winding pitch	2
Wingding leads	12
Protection	IP23
Excitation system	Brushless, self-excited
AVR type	AS440
Voltage regulation (*)	±1%
Short-circuit current	300% (3 IN) : 10
Total Harmonic Distortion THD (**) in no-load	< 4%
Waveform: NEMA = TIF (**)	< 50
Waveform: I.E.C. = THF (**)	< 2%
Overspeed	2250 R.P.M
Altitude	≤1000M
Air flow	2.5 m3/s (50 Hz) - 2.8 m3/s (60 Hz)

Dingbo Power has advanced testing equipment, modern production technology, professional manufacturing technology, perfect quality management system, and strong technical research and development capabilities. It can provide 3KW～2500KW various specifications of ordinary, automatic, four protection, automatic switching, low noise and mobile generator sets, high quality and low energy consumption to meet the diverse power needs of customers, and can also meet users with different voltages and different frequencies. It is required to create a parallel power supply system for multiple units. If you are interested in Cummins generators or any question on generator, welcome to send email to sales@dieselgeneratortech.com.
