Guangxi Dingbo Sold 1600kW Perkins Diesel Generator Set

Aug. 01, 2023

On September 10th, 2022, Guangxi Dingbo Generator Set Manufacturing Co.,Ltd. sold one set of 1600kw Perkins diesel generator, it is used for a hotel as emergency power supply.

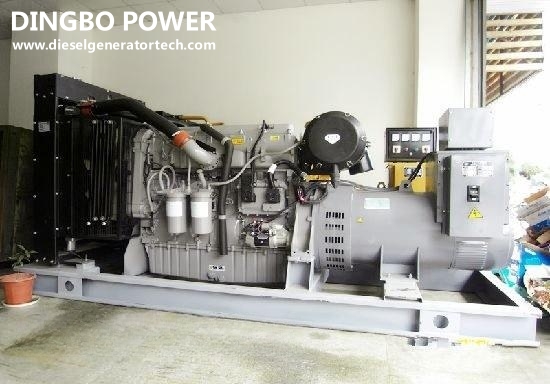

This prime power 1600kw diesel genset is powered by Perkins engine 4016-61TRG2, Leroy Somer alternator LSA52.3 S6.

deutz hatz cummins perkins volvo

The Perkins 4000 Series family of 6, 8, 12 and 16 cylinder diesel engines was designed in advance of today’s uncompromising demands within the power generation industry and includes superior performance and reliability. The 4016-61TRG ElectropaK is a newly developed turbocharged, air-to-water charge cooled, 16 cylinder diesel engine. Their premium design and specification features provide economic and durable operation as well as exceptional power to weight ratio, improved serviceability, low gaseous emissions, overall performance and reliability essential to the power generation market.

Specifications
Supplier	Guangxi Dingbo Generator Set Manufacturing Co.,Ltd.
Model	XG-1600GF
Prime Power	1600KW/2000KVA
Standby Power	1760KW/2200KVA
Rated voltage	400V
Rated current	2880A
Power factor	0.8LAG
Frequency	1500RPM
Speed	50Hz
Engine model	Perkins 4016-61TRG2
Prime power of engine	1774KW
Standby power of engine	1985KW
Number of cylinders	16 60º Vee form
Bore and stroke	160 x 190 mm
Displacement	61.123 Liters
Aspiration	Quad turbocharged. Air to water charge cooled
Cycle	4 stroke
Combustion system	Direct injection
Compression ratio	13.6:1
Rotation	Anti-clockwise, viewed from flywheel end
Total lubricating capacity	237.2 litres
Cooling system	Water-cooled
Total coolant capacity	215 litres
Fuel consumption at 1500 rpm (l/hr)
Standby power(maximum)	477
Prime power	422
Baseload power	342
75%	318
50%	216
25%	116
Alternator	Leroy Somer LSA52.3 S6
Prime power of alternator	1600KW
Standby power of alternator	1760KW
Insulation class	H
Winding pitch	2/3 (wind. 6S)
Number of wires	6
Protection	IP23
Excitation system	AREP + PMI
AVR type	D550
Voltage regulation (*)	±0.25%
Short-circuit current	300% (3 IN) : 10
Total Harmonic Distortion THD (**) in no-load	< 4%
Waveform: NEMA = TIF (**)	< 50
Waveform: I.E.C. = THF (**)	< 2%
Overspeed	2250 R.P.M
Altitude	≤1000M
Air flow	2.5 m3/s (50 Hz) - 2.8 m3/s (60 Hz)

Dingbo Power has advanced testing equipment, modern production technology, professional manufacturing technology, perfect quality management system, and strong technical research and development capabilities. It can provide 3KW～2500KW various specifications of ordinary, automatic, four protection, automatic switching, low noise and mobile generator sets, high quality and low energy consumption to meet the diverse power needs of customers, and can also meet users with different voltages and different frequencies. It is required to create a parallel power supply system for multiple units. If you are interested in Perkins generator or any question on generator, welcome to send email to sales@dieselgeneratortech.com.
