The Main Points of Installing Silent Diesel Generators

Aug. 05, 2023

Today we will give you a brief introduction to the main points when installing silent diesel generators. If still any question, welcome to visit Dingbo website. Then we will introduce you related contents.

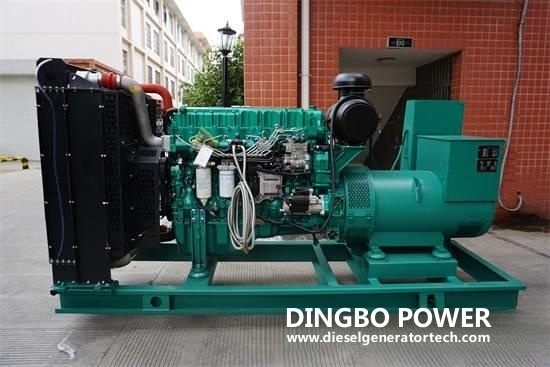

Perkins generator 100kw 2250kva Cummins Diesel Generator Set

The installation location needs to be well ventilated, and the mute diesel generator should have enough air intake, and the diesel engine should have a good ventilation. The exit area should be more than 1.5 times the area of the water tank. Wheel around the installation should be cleaned to avoid placing an article that can produce acid, alkaline etching gases and steam in the vicinity. Conditional should be configured.


In indoor use, the exhaust pipe must be opened out of the exhaust pipe, the pipe diameter must be ≥ the tube diameter of the muffler, the elbow of the pipeline should not exceed 3, to ensure the smoke, and should down the pipe down Tilt 5-10 degrees, avoid rain injection; if the exhaust pipe is installed vertically, it must be installed.


When the basis is used, the horizontal measurement is required to measure the horizontal level during installation, so that the mute diesel generator is fixed to the horizontal basis. There should be a special anti-shock pad or a foot bolt between the mute diesel generator and the foundation.


The mute diesel generator enclosure must have a reliable protective grounding, and the mute diesel generator that needs to be directly grounded, it must be neutral grounded by the professional, and the lightning protection device is configured, which is strictly prohibited to use the main grounding device of the mains. The neutral point is directly grounded. The two-way switch of the mute diesel generator and the main electricity must be very reliable to prevent electricity. The wiring reliability of the bidirectional switch needs to be approved by the local power supply sector.


Dingbo Power was founded in 2006 and is one of the earliest manufacturers of generators and diesel generator sets in China. If you want get more information, welcome send email to sales@dieselgeneratortech.com we will pay highly attention on your question.
