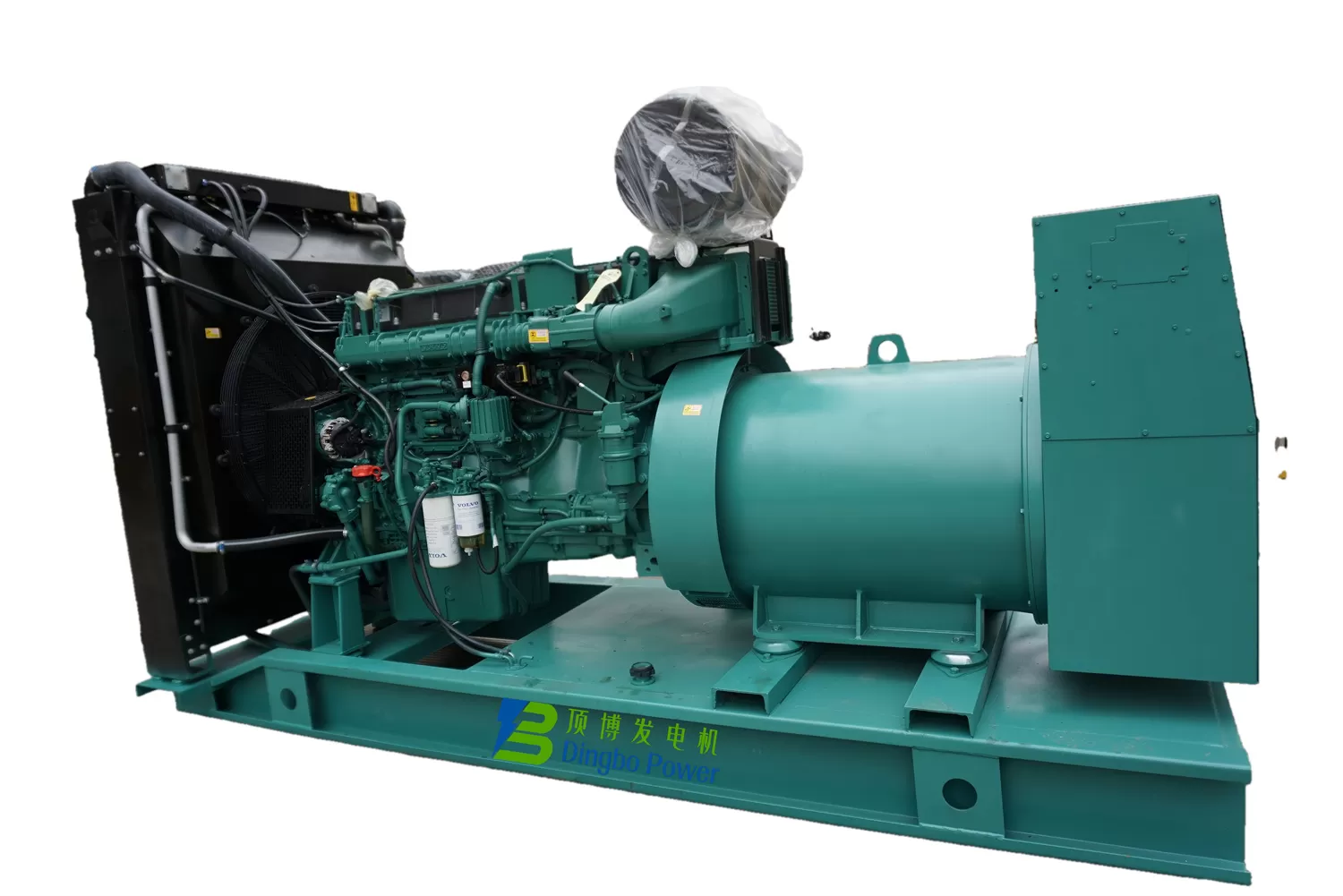

Diesel Generator Set Data
Set Type: DB-330GF
Prime Power: 314KW/383kVA
Standby Power:345KW/431kVA
Rated Current: 596A
Rated Frequency: 50Hz/60Hz
Start-up Time: 5~6 S
Power Fector: 0.8 Lag
Rated Voltage: 400/230 V
Standard Features
Diesel Engine: VOLVO TAD1352GE
Radiator 50℃ Max
Fans Are Driven By Belt, With Safety Guard
24V Charge Alternator
Dry Type Air Filter, Fuel Filter, Oil Filter
Alternator: Single Bearing Alternator
IP23, Insulation Class H/H
Main Line Circuit Breaker
Standard Control Panel
Absorber
Muffler
User Manual
Technical Data Of Diesel Engine | |
Manufacturer: | Volvo |
Model: | TAD1352GE |
Prime Power: | 314KW/344KW |
Standby Power: | 345KW/376KW |
Rated Speed: | 1500/1800 r/min |
No. Of Cylinders: | In-line 6 |
Method Of Operation: | 4-Strock |
Displacement: | 4.76L |
Bore And Stroke: | 131*158mm |
Compression Ratio: | 18.1:1 |
Governor Type: | Electronic |
Start Battery Voltage: | 24V DC |
Dry Weight: | 1295kg |
Wet Weight: | 1325kg |
Lubrication System
Oil Consumption Prime Power: | 0.04 Liter/h |
Oil Consumption Standby Power: | 0.05 Liter/h |
Oil System Capacity Incl Filters: | 36 Liter |
Fuel System
Fuel Consumption Prime Power1800 rpm: | |
25% | 252g/kWh |
50% | 218g/kWh |
75% | 209g/kWh |
100% | 205g/kWh |
Fuel Consumption Standby Power1800 rpm: | |
25% | 253 g/kWh |
50% | 214 g/kWh |
75% | 210 g/kWh |
100% | 208 g/kWh |
Fuel filters of disposable type | |
| Electronic unit injectors | |
Pre-filter with water separator | |
Lubrication System
Oil dipstick |
Full-flow oil filter of spin-on type |
By-pass oil filter of spin-on type |
| Oil cooler, side mounted |
Low noise oil sump |
Cooling System
| Heat rejection radiation from engine Prime Power | 8 kW |
| Heat rejection radiation from engine Standby Power | 9 kW |
| Heat rejection to coolant Prime Power | 164 kW |
| Heat rejection to coolant Standby Power | 177 kW |
| Fan power consumption | 15 kW |
