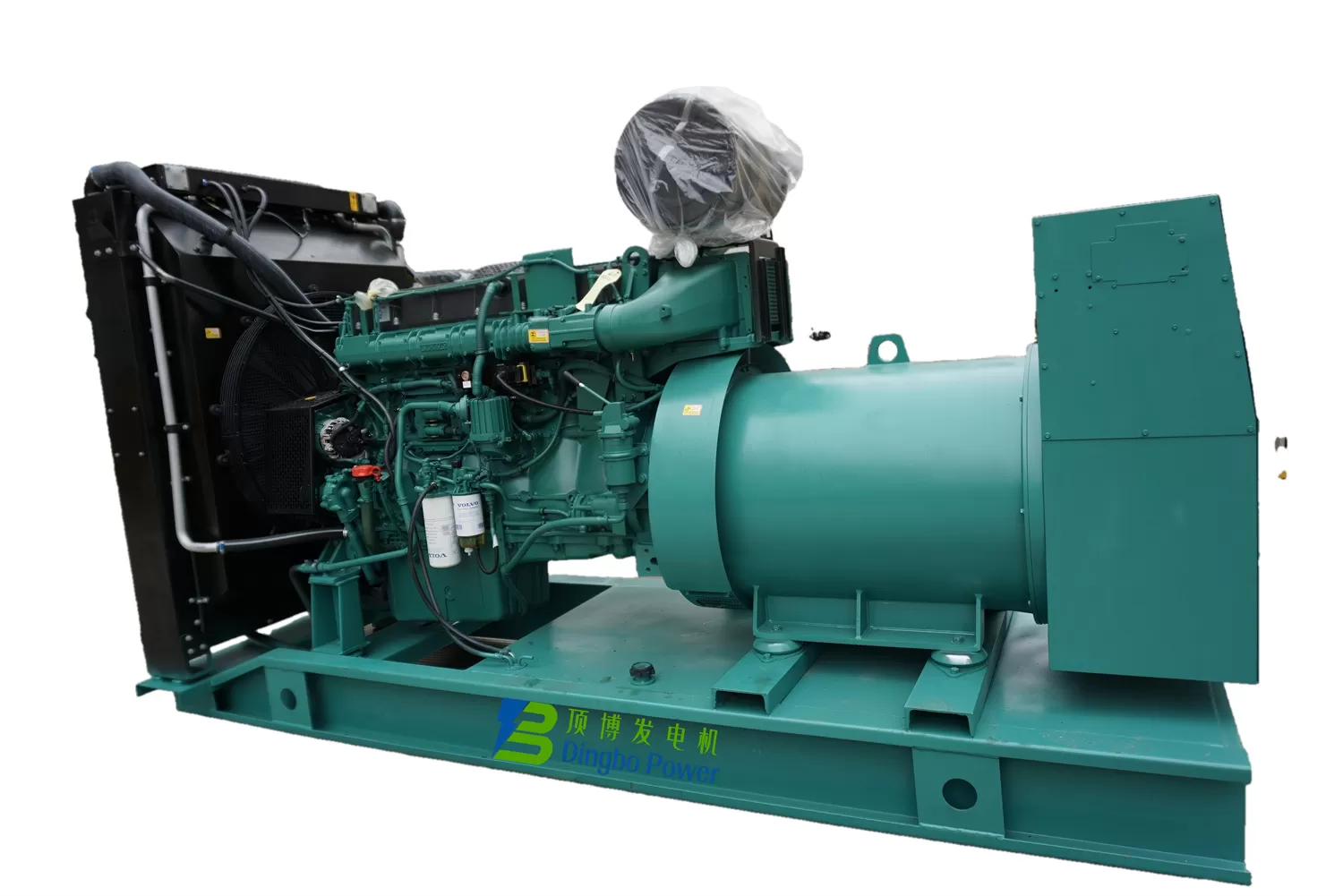

Diesel Generator Set Data
Set Type: DB-440GF
Prime Power: 440KW/550kVA
Standby Power:484KW/605kVA
Rated Current: 794A
Rated Frequency: 50Hz/60Hz
Start-up Time: 5~6 S
Power Fector: 0.8 Lag
Rated Voltage: 400/230 V
Diesel Engine: VOLVO TAD1650GE
Radiator 50℃ Max
Fans Are Driven By Belt, With Safety Guard
24V Charge Alternator
Dry Type Air Filter, Fuel Filter, Oil Filter
Alternator: Single Bearing Alternator
IP23, Insulation Class H/H
Main Line Circuit Breaker
Standard Control Panel
Absorber
Muffler
User Manual
Technical Data Of Diesel Engine | |
Manufacturer: | Volvo |
Model: | TAD1641GE-B |
Prime Power: | 440KW/550kVA |
Standby Power: | 484KW/605kVA |
Rated Speed: | 1500/1800 r/min |
No. Of Cylinders: | In-line 6 |
Method Of Operation: | 4-Strock |
Displacement: | 16.12L |
Bore And Stroke: | 144*165mm |
Compression Ratio: | 16.5:1 |
Governor Type: | Electronic |
Start Battery Voltage: | 24V DC |
Dry Weight, Engine Only: | 1480kg |
Wet Weight, With Gen Pac: | 1910kg |
Oil Consumption Prime Power: | 0.08 Liter/h |
Oil Consumption Standby Power: | 0.08 Liter/h |
Oil System Capacity Incl Filters: | 13 Liter |
Fuel Consumption Prime Power1500/1800 rpm: | |
25% | 276/302 g/kWh |
50% | 231/240 g/kWh |
75% | 219/223 g/kWh |
100% | 217/219 g/kWh |
Fuel Consumption Standby Power1500/1800 rpm: | |
25% | 263/286 g/kWh |
50% | 226/235 g/kWh |
75% | 218/222 g/kWh |
100% | 218/219 g/kWh |
Six Hole Fuel Injection Nozzles | |
Electronic Govemor With Smoke Limiter Function | |
Washable Fuel Prefilter With Water Separator | |
Rotary Low-Pressure Fule Pump | |
Fine Fuel Filter Of Disposable Type | |
Full Flow Disposable Spin-On Oil Filter, For Extra High Filtration |
Rotary Displacement Oil Pump Driven By The Crankshaft |
Deep Centre Oil Sump, 30° Inclination |
Oil Dipstick, Short In Front |
Oil Filler On Top |
Integrated Full Flow Oil Cooler, Side-Mounted |
Belt Driven, Maintenance-Free Coolant Pump With High Degree Of Efficiency |
Efficient Cooling With Accurate Coolant Control Through A Water Distribution Duct In The Cylinder Block |
Reliable Thermostat With Minimum Presure Drop |
Cooling Water Pipe, Inlet And Outlet |
Fan Hub |
Fan On Separate Brachet 292mm Above Crankshaft |
Manufacturer: | LEROY SOMER/STAMFORD/SIEMENS/MARATHON/ENGGA/KEPU |
Excitation Mode: | Brushless and self- exciting |
Number of phase and Access Act: | 3-phase 4-wire |
Connecting Type: | "Y" type connecting |
Alternator Capacity: | 750KVA |
Alternator Efficiencies: | 95％ |
Overload: | （PRP）110% load can run 1h |
Protection Level: | IP22-IP23 |
Insulation Class, Temperature Rise: | H/H |
Telephone Influence Factor (TIF): | ＜50 |
THF: | ＜2% |
Voltage Regulation, Steady State: | ≤±1% |
Air Cooling Flow: | 1.035m3/s |
Altitude: | ≤1000m |
Voltage Regulation: | ≥±5% |
Voltage Regulation, Stead State: | ≤±1% |
Sudden Voltage Warp (100% Sudden Reduce): | ≤+25% |
Sudden Voltage Warp (Sudden Increase): | ≤-20% |
Voltage Stable Time (100% Sudden Reduce): | ≤6S |
Voltage Stable Time (Sudden Increase): | ≤6S |
Frequency Regulation, Stead State: | ≤5% |
Frequency Waving: | ≤1.5% |
Sudden Frequency Warp (100% SuddenReduce): | ≤+12% |
Sudden Frequency Warp (Sudden Increase): | ≤-10% |
FrequencyRecoveryTime(100%SuddenReduce): | ≤5S |
FrequencyRecoveryTime(Sudden Increase): | ≤5S |
 | Dingbo Standard Control Panel uses micro processing technique integrating digital, intelligent and network techniques which can carry out functions including auto start/stop, data measure, alarming. The controller uses LCD display, optional Chinese and English display interface with operation easy and reliable. It can be widely used in all types of generator automatic control system for compact structure, advanced circuits, simple connections and high reliability |
 | Auto Module Control Panel is the configuration for nobody on duty controlling generators. This kind of panel adopts auto module control system, with large LCD display to show the menu. Features: 6110 can receive remote output signal from ATS and realize auto start and stop of generators. 6310 can realize all functions of 6110, add RS232 interface which can communicate with PC to realize remote operation. 6410 Auto Mains Failure controller, can realize all functions of 6310, furthermore can detect ATS and control directly. |
 | This new automatic parallel system adopts intelligent modules, inserted and folded installed, no need the peripheral relay and logic circuit. The main switch adopts electronic breaker or frame breaker, combined together with the generator, which is very reliable. One generator, one panel. The panel can be used both for singly and parallel. It is only need to parallel generator with such panel when the capability needs to be enlarged in the future. |
