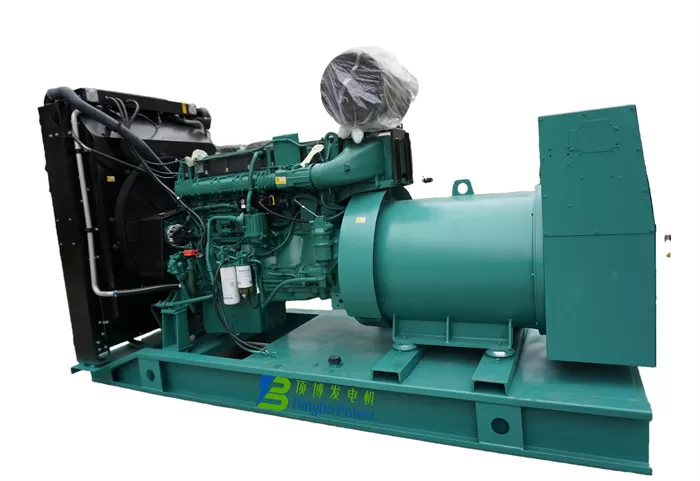

130KW 163kVA VOLVO DIESEL GENERATOR SET Set Data
Set Type: DB-130GF
Prime Power: 130KW/163kVA
Standby Power:143KW/179kVA
Rated Current: 235A
Rated Frequency: 50Hz/60Hz
Start-up Time: 5~6 S
Power Fector: 0.8 Lag
Rated Voltage: 400/230 V
Standard Features
Diesel Engine: VOLVO TAD731GE
Radiator 50℃ Max
Fans Are Driven By Belt, With Safety Guard
24V Charge Alternator
Dry Type Air Filter, Fuel Filter, Oil Filter
Alternator: Single Bearing Alternator
IP23, Insulation Class H/H
Main Line Circuit Breaker
Standard Control Panel
Absorber
Muffler
User Manual
Technical Data Of Diesel Engine | |
Manufacturer: | Volvo |
Model: | TAD731GE |
Prime Power: | 134KW/139KW |
Standby Power: | 148KW/153KW |
Rated Speed: | 1500/1800 r/min |
No. Of Cylinders: | In-line 6 |
Method Of Operation: | 4-Strock |
Displacement: | 7.15L |
Bore And Stroke: | 108*130mm |
Compression Ratio: | 18:1 |
Governor Type: | Electronic |
Start Battery Voltage: | 24V DC |
Dry Weight: | 760kg |
Wet Weight: | 804kg |
Lubrication System
Oil Consumption Prime Power: | 0.01 Liter/h |
Oil Consumption Standby Power: | 0.01 Liter/h |
Oil System Capacity Incl Filters: | 20 Liter |
Fuel System
Fuel Consumption Prime Power1500/1800 rpm: | |
25% | 259/279 g/kWh |
50% | 224/231 g/kWh |
75% | 216/220 g/kWh |
100% | 215/217 g/kWh |
Fuel Consumption Standby Power1500/1800 rpm: | |
25% | 244/259 g/kWh |
50% | 219/224 g/kWh |
75% | 215/218 g/kWh |
100% | 215/217 g/kWh |
Six Hole Fuel Injection Nozzles | |
Electronic Govemor With Smoke Limiter Function | |
Washable Fuel Prefilter With Water Separator | |
Rotary Low-Pressure Fule Pump | |
Fine Fuel Filter Of Disposable Type | |
Lubrication System
Full Flow Disposable Spin-On Oil Filter, For Extra High Filtration |
Rotary Displacement Oil Pump Driven By The Crankshaft |
Deep Centre Oil Sump, 30° Inclination |
Oil Dipstick, Short In Front |
Oil Filler On Top |
Integrated Full Flow Oil Cooler, Side-Mounted |
Cooling System
Belt Driven, Maintenance-Free Coolant Pump With High Degree Of Efficiency |
Efficient Cooling With Accurate Coolant Control Through A Water Distribution Duct In The Cylinder Block |
Reliable Thermostat With Minimum Presure Drop |
Cooling Water Pipe, Inlet And Outlet |
Fan Hub |
Fan On Separate Brachet 292mm Above Crankshaft |
| Pusher fan Ø 600 mm |
